Modified Ektapro 9020 Cine
Kodak Ektapro 80 Carousel sealed with 2 layers of light-proof sheets
Lamp module removed
Kodak Ektapro Select FF lens
75-120mm, f/ 3.5, focus fixed
Slide holders loaded with Kodak 5222 motion film
Manufactured by Kodak, 1995

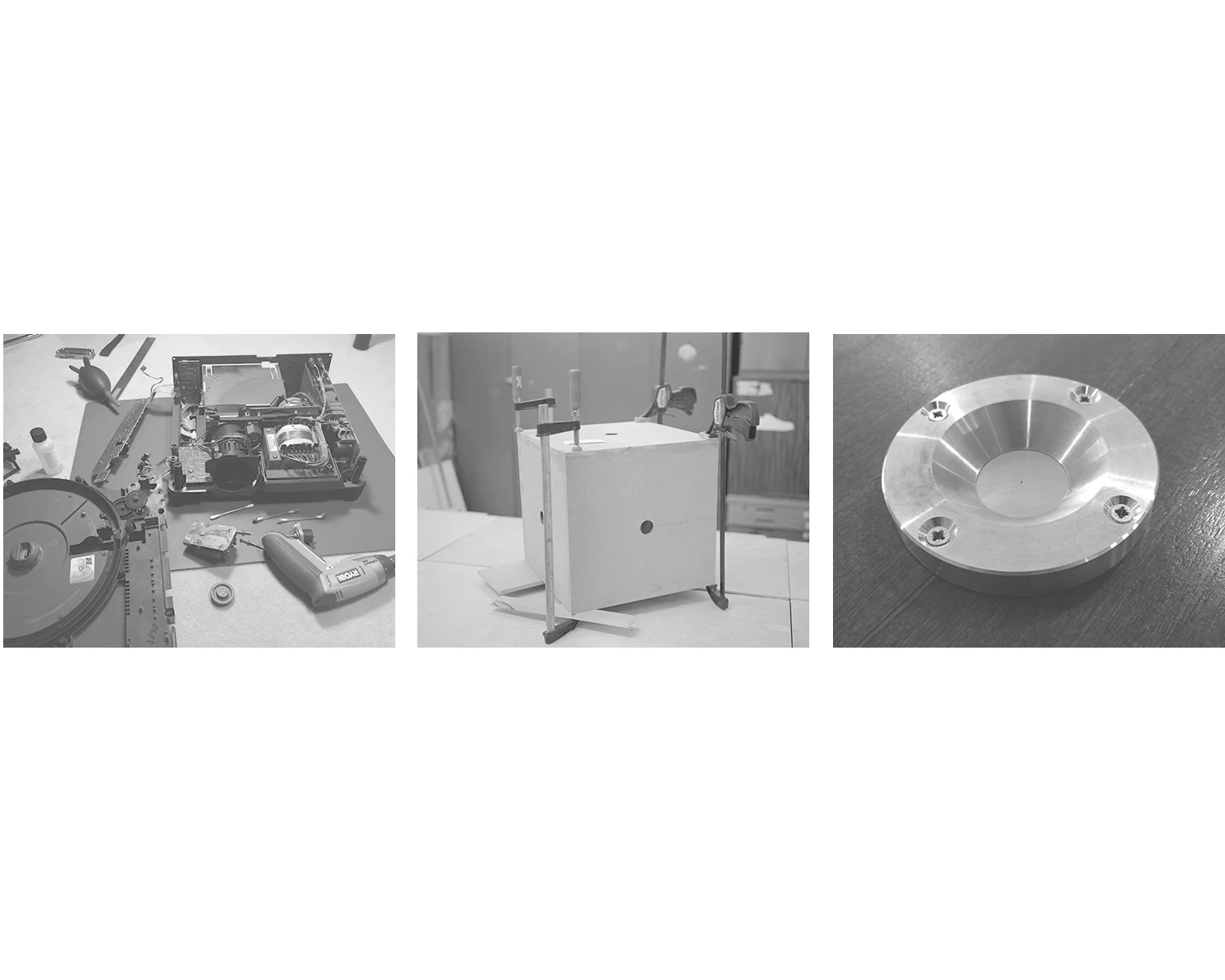

Left: Repairing and Light-proofing of Ektapro 9020 Cine

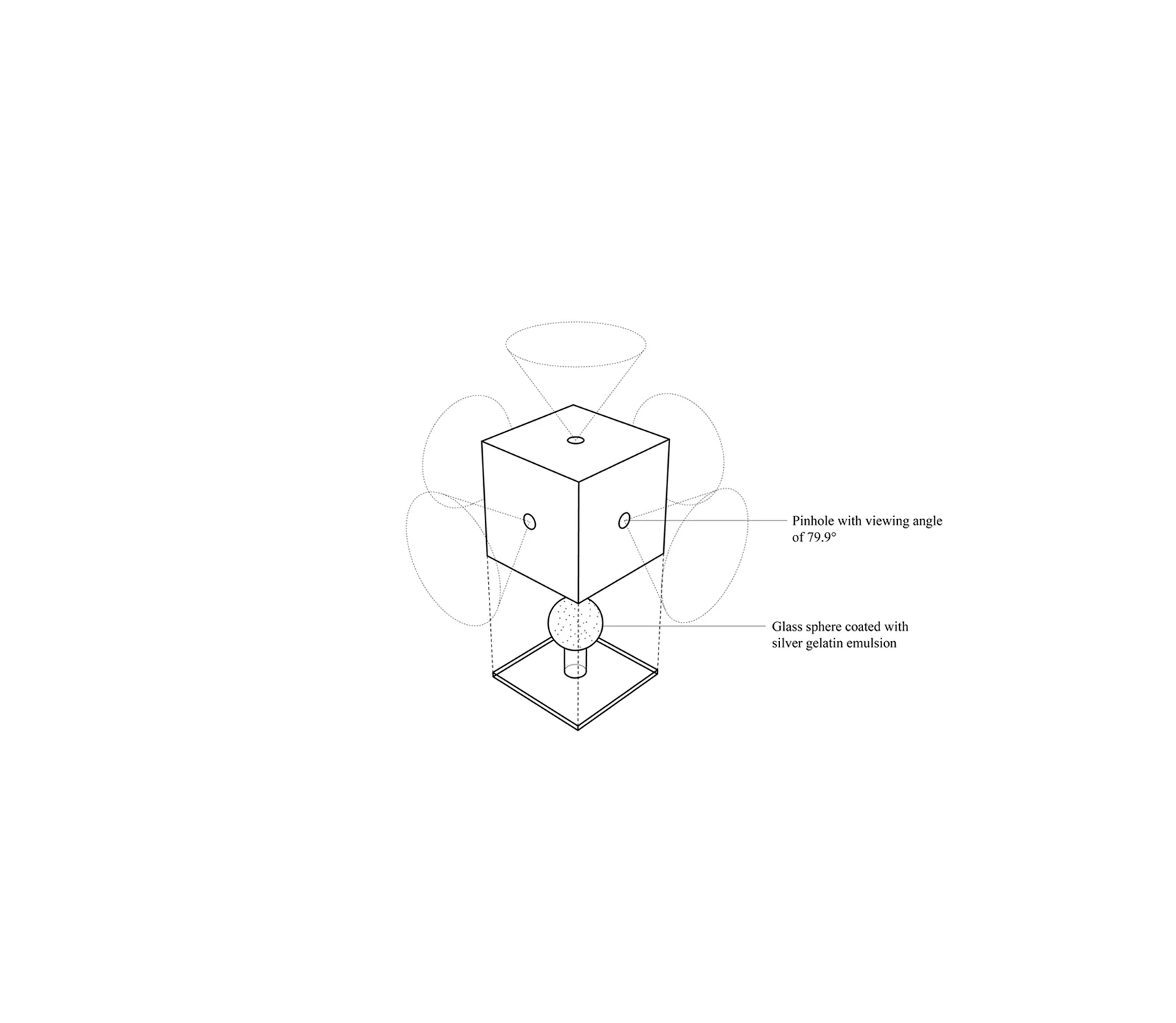

Mid: Construction of the 5-Pinhole Box from MDF
Right: Mounting the Turned Aluminium Pinhole Component to the Box

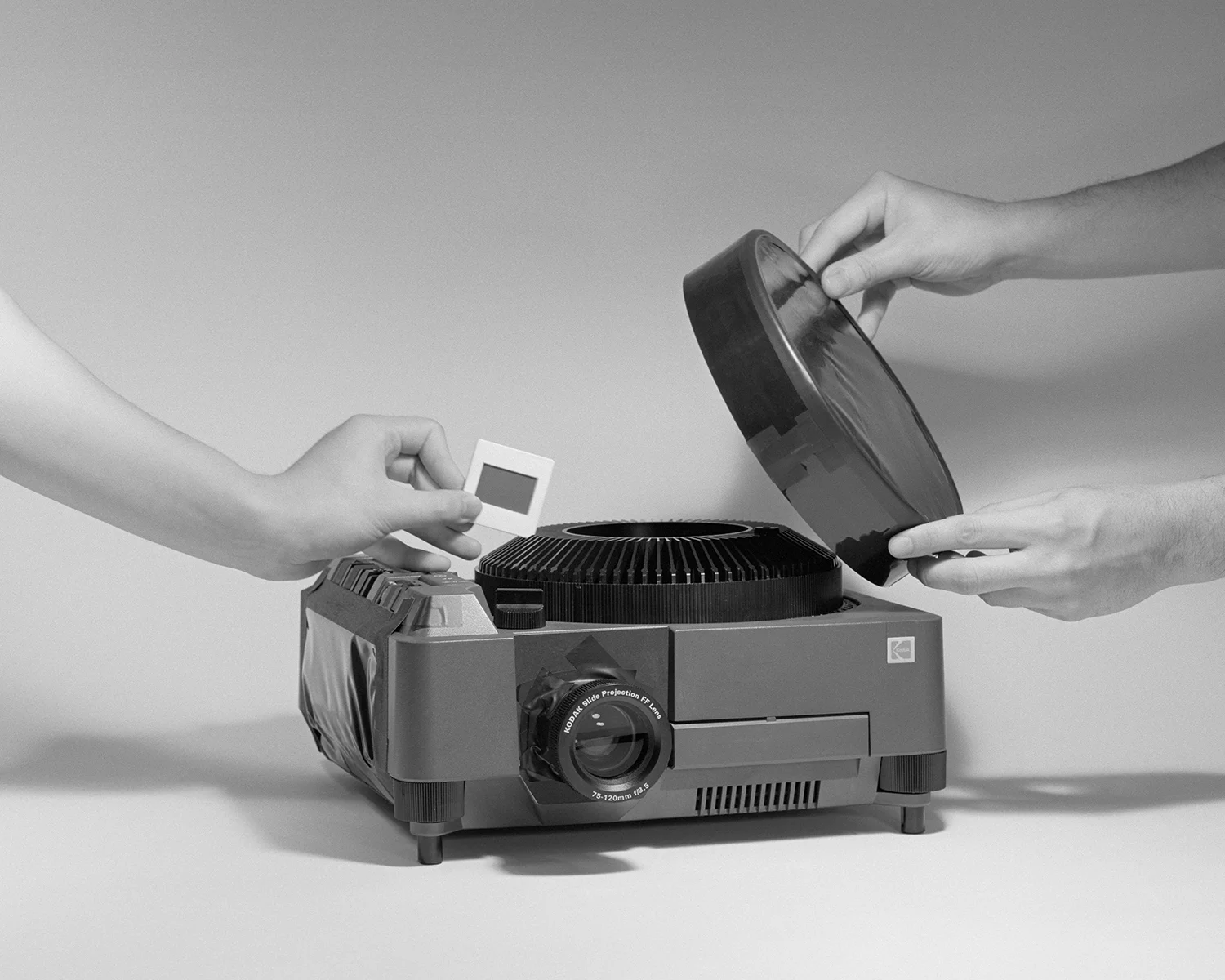

Left: Mounting slides with unexposed black and white motion film
Mid: Light-proof drying boxes to air dry spheres coated with emulsion
Right: Coating glass spheres with liquid emulsion in the ad-hoc darkroom / laundry room

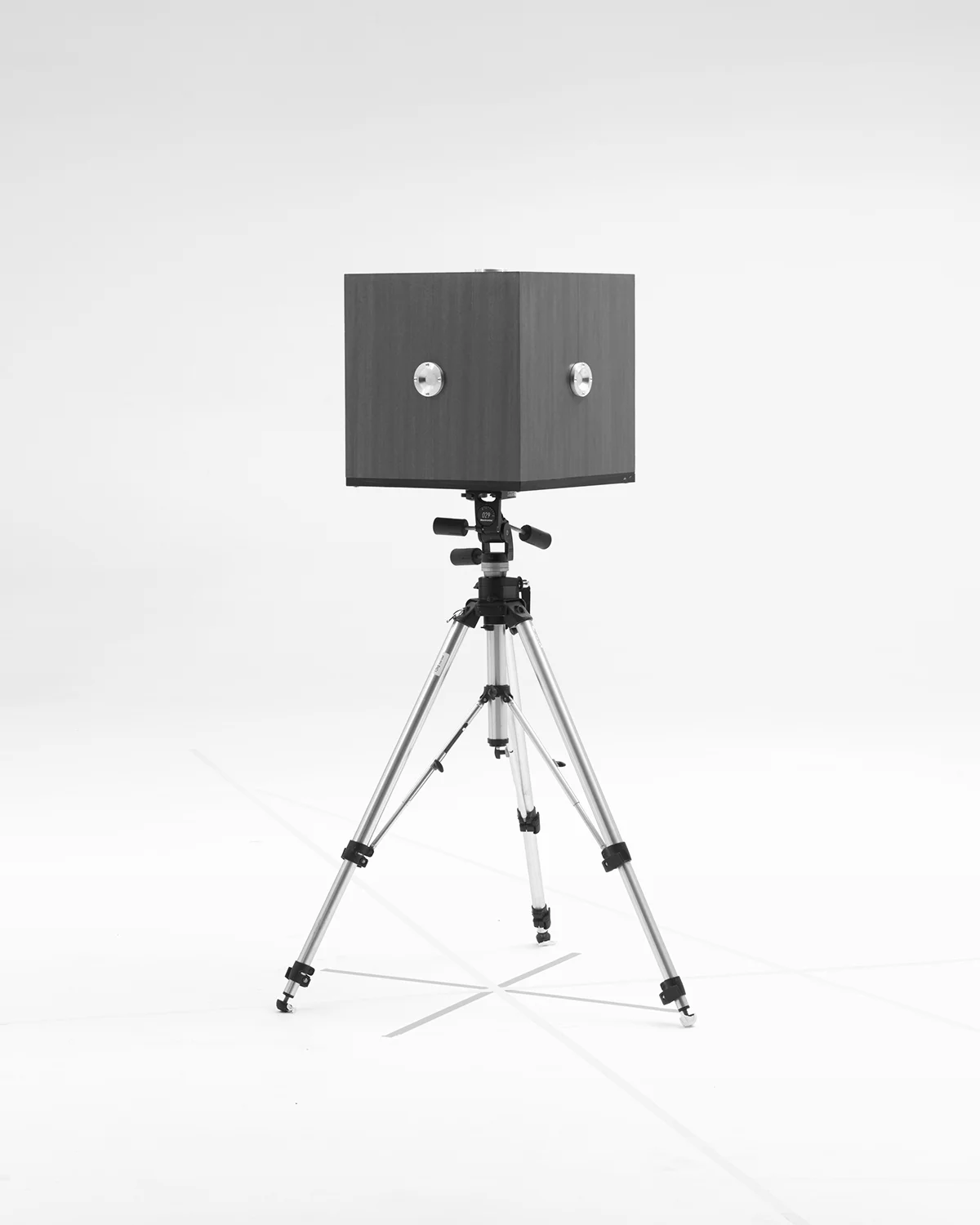

MDF, Mahogany Veneer
44x44x44cm
f/171
12.5 KG

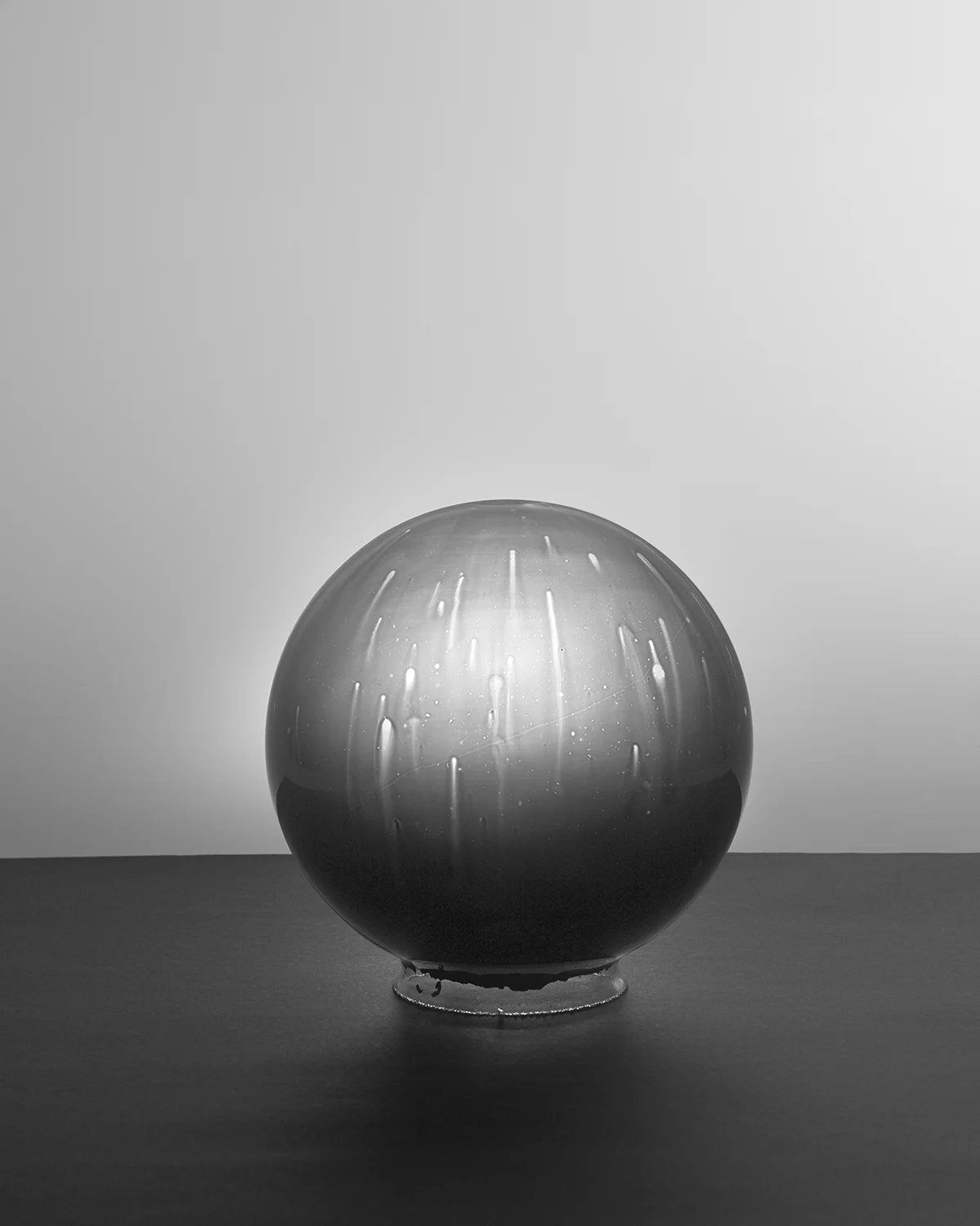

20cm glass sphere subbed with
1 coat of RMB4 photo gelatin with RBM5 addictive hardener
3 coats of FOMA liquid emulsion diluted with alcohol
Deliberately overexposed as defects were spotted during coating
Streaks formed due to the addition of Photo-Flo during glass cleaning
20cm glass sphere subbed with
1 coat of RMB4 photo gelatin with RBM5 addictive hardener
2 coats of FOMA liquid emulsion diluted with alcohol
Metered for ISO 3 at f/5.6, 0.8s
Exposed indoors with 3200K tungsten lighting for 3.75 hours
Pre-hardened and developed in Ilford PQ paper developer, 1:9
Stop bath and fixers added with RBM5 addictive hardener
Kodak 5222 Double X Motion Film
Exposed at ISO 200, f/3.4, 1s with ND0.9 Filter
Mounted on GEPE glassless slide holders
